You depend on your furnace to work as intended to keep you warm during a brisk winter in Northwest Chicagoland. When it’s on the fritz, you risk going without heat when you need it most. One telltale sign of a system issue is an abnormal clicking sound coming from your heating unit.
While a single click when the furnace turns on or off can be normal, repetitive or continuous clicking often signals a component failure. Below, we break down what causes your furnace to make a clicking sound, how to diagnose the pattern, and when to call a professional HVAC technician.
Quick Takeaway:
A furnace that clicks repeatedly without turning on typically has an ignition failure (such as a dirty flame sensor, worn hot surface igniter, or sticking gas valve). If the clicking comes from your ductwork or blower, it is often caused by thermal expansion or loose mechanical parts.
Common Reasons Your Furnace Is Making Clicking Sounds
Understanding the pattern and source of the sound can help you determine the severity of the issue. Here are the primary reasons a furnace starts clicking:
1. Ignition System & Pilot Light Failures
If your furnace clicks repeatedly before shutting down (or locking out), the ignition system is likely failing to light the burners safely.
- Electronic Igniters & Spark Ignitions: Modern furnaces use hot surface igniters or intermittent spark ignitions rather than a standing pilot light. If the igniter is cracked, worn out, or misaligned, it will continuously click as it tries to ignite the gas.
- Dirty Flame Sensor: If the flame sensor is coated in soot or oxidation, it won’t detect the flame even if it ignites. As a safety precaution, the system shuts off gas flow, leading to repeated clicking cycles.
- Gas Valve Issues: A gas valve that is jammed, clogged, or receiving faulty voltage will click open and closed without delivering adequate fuel to the burners.
2. Loose or Defective Mechanical Components
Physical wear and tear can create clicking noises during system operation:
- Inducer Motor & Blower Fan: Dirt, dust, or worn bearings can loosen fan blades or the draft inducer assembly, causing parts to tap against housing panels.
- Ductwork Expansion: Metal air ducts naturally expand and contract as heated air flows through them. This often creates a metallic clicking or popping sound throughout the house, which is generally harmless.
- Electrical Wiring & Relays: Faulty wiring, loose connections, or failing control board relays can produce clicking inside the cabinet as electrical contacts try to engage.
3. Failing or Improperly Wired Thermostat
Your thermostat sends low-voltage signals to command the furnace to start heating. If the thermostat has low batteries, bad internal relays, or damaged wiring, it can send intermittent signals to your control board. This causes the system relays to click rapidly on and off without starting a complete heating cycle.
Quick Diagnostic Guide: What Does Your Furnace Click Mean?
Use this quick guide to evaluate the noise your system is making:
| Clicking Pattern | Likely Cause | Recommended Action |
|---|---|---|
| Clicks multiple times, no heat turns on | Igniter, flame sensor, or gas valve lockout | Schedule professional repair |
| Single click at startup & shutdown | Normal electrical relay operation | No action required |
| Repetitive clicking from wall vents | Ductwork thermal expansion | Monitor; inspect duct securing if loud |
| Rapid clicking inside furnace cabinet | Failing control board relay or thermostat wire | Turn system off & call an HVAC tech |
Troubleshooting & Maintenance Tips
Before calling for service, there are a few safe troubleshooting steps you can perform:

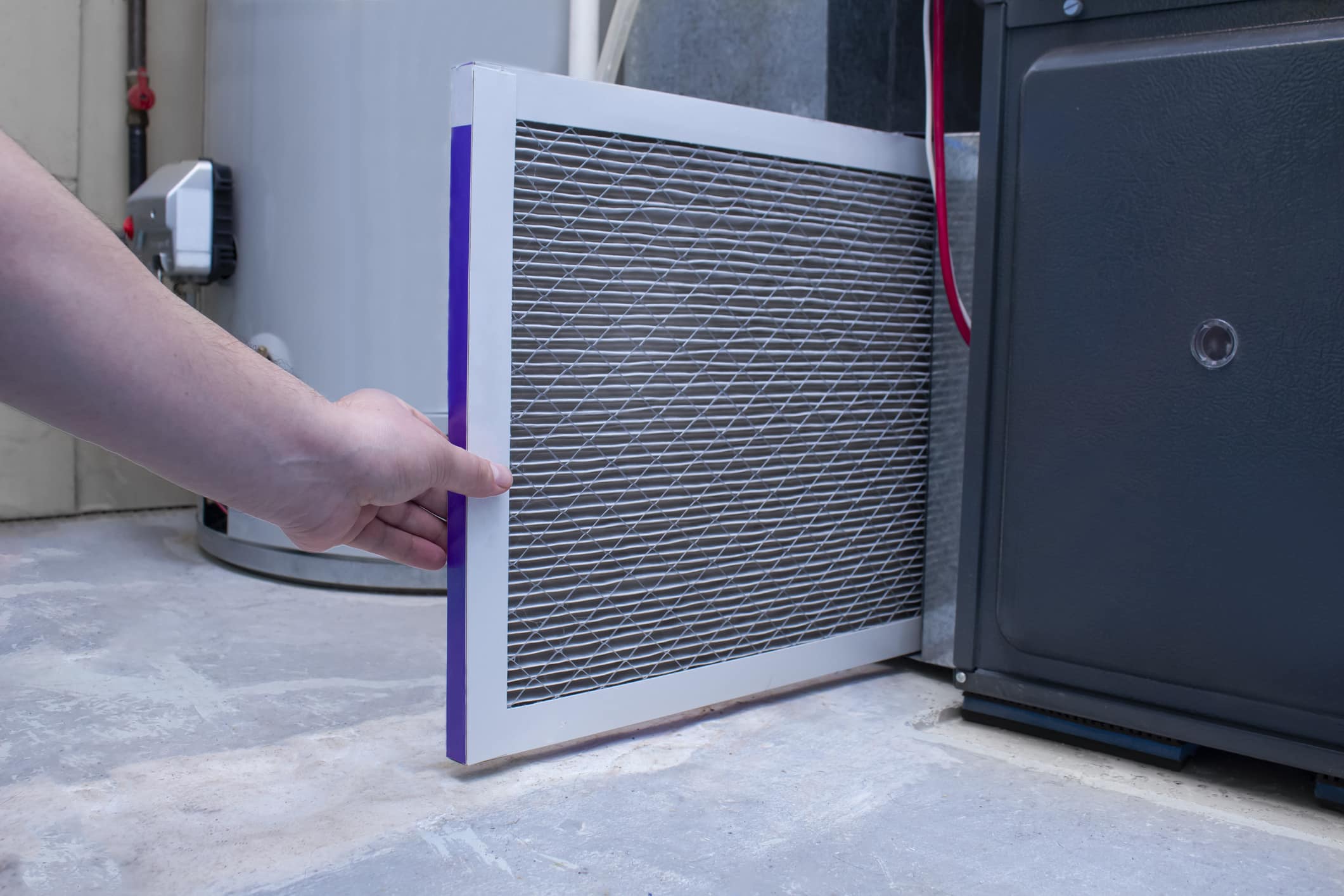

- Check the Air Filter: A severely clogged filter restricts airflow, causing overheating and rapid cycling that leads to unusual component noises.
- Inspect the Thermostat: Ensure your thermostat is set to “Heat,” test fresh batteries, and verify that the target temperature is set above the current room temperature.
- Check Visual Clearances: Ensure the intake and exhaust vents outside your home are free of snow, ice, or debris, and verify that interior supply registers are open.
Safety Warning: Modern gas furnaces run on high voltage and natural gas/propane lines. Never attempt to manually ignite gas components, disassemble gas valves, or adjust internal wiring yourself. If you smell gas (a rotten egg odor), evacuate immediately and contact your gas utility provider.
If simple troubleshooting doesn’t resolve the noise, specific internal components are likely worn out and require professional heating repair or replacement. A certified technician can safely diagnose high-voltage electrical components and gas assembly systems.
